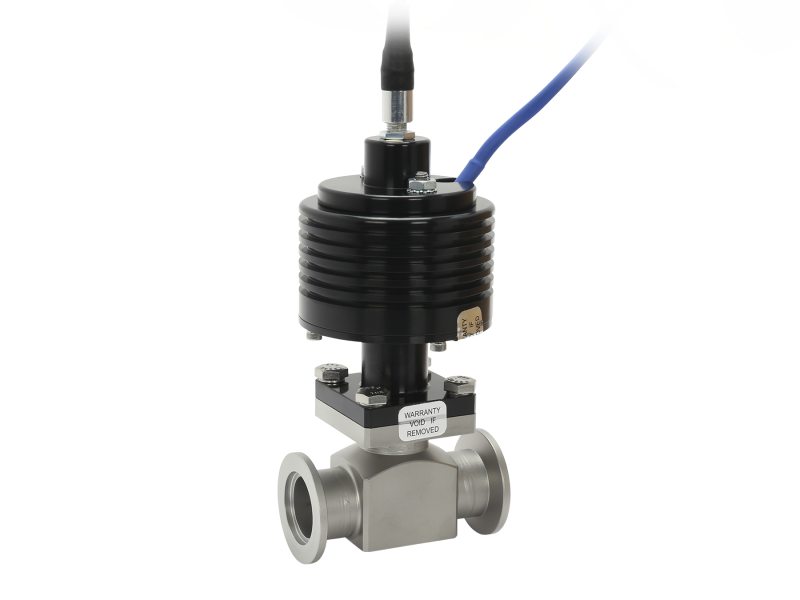

ECv Electric Bellows Vacuum Isolation Valves
Model: CVNL-K2-ECLVV-24DC
ECv Electric Bellows Vacuum Isolation Valves
Model: CVNL-K2-ECLVV-24DC
Overview
Overview
The inline CVNL-K2-ECLVV-24DC Electromagnetic Cv Valve has an inline body configuration, ISO-KF NW25 flanges, Viton Seals, and operates with 24VDC power. It can be used in place of any existing Cv valve where electric actuation is preferred over pneumatic or manual actuation. ECv valves are actuated by a direct current electric power supply, and do not require the use of a pneumatic system.
Technical Specs
- TypeElectromagnetic Valve
- Vacuum RangeAtmosphere to 10-9 Torr
- Body ConfigurationInline
- Port Size1.0 in.
- Flange TypeISO-KF NW25
- Helium Leak RateLess than 1.0 x 10-9 std cc/sec
- Wetted Volume1.09 in3 (17.8 cm3) (approximate)
- ActuationElectromagnetic, Normally Closed
- Limit SwitchYes
- SealViton
- Control Port Options24 VDC Solenoid
- Voltage Requirements24 VDC
- Amperage Requirements1.3 Amps (initial) 0.3 Amps (running)
- Limit Switch Rating0.5 Amps, 24 VDC
- Solenoid Voltage32 Watts (initial) 7 Watts (running)
- Blow-By PressureN/C 35 psi, N/O 50 psi
- Actuation Time60 msec (opening/closing)
- Operating Temperature-26 - 60°C
- Maximum Bakeout Temperature150°C (with solenoid coil removed)
- OrientationSeals against ATM at either port
- Typical Life1,000,000 cycles
- Weight38.7 oz (1090 g) (approximate)
Technical Specs
- TypeElectromagnetic Valve
- Vacuum RangeAtmosphere to 10-9 Torr
- Body ConfigurationInline
- Port Size1.0 in.
- Flange TypeISO-KF NW25
- Helium Leak RateLess than 1.0 x 10-9 std cc/sec
- Wetted Volume1.09 in3 (17.8 cm3) (approximate)
- ActuationElectromagnetic, Normally Closed
- Limit SwitchYes
- SealViton
- Control Port Options24 VDC Solenoid
- Voltage Requirements24 VDC
- Amperage Requirements1.3 Amps (initial) 0.3 Amps (running)
- Limit Switch Rating0.5 Amps, 24 VDC
- Solenoid Voltage32 Watts (initial) 7 Watts (running)
- Blow-By PressureN/C 35 psi, N/O 50 psi
- Actuation Time60 msec (opening/closing)
- Operating Temperature-26 - 60°C
- Maximum Bakeout Temperature150°C (with solenoid coil removed)
- OrientationSeals against ATM at either port
- Typical Life1,000,000 cycles
- Weight38.7 oz (1090 g) (approximate)
