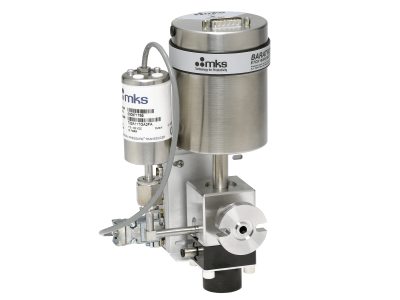

Baratron® 100°C Heated 0.05 to 1000 Torr Isolation System

The CV7628H Isolation System is designed to automatically maintain a 100°C heated 628H Baratron® capacitance manometer at vacuum throughout a process cycle. Maintaining a heated Baratron® capacitance manometer at vacuum is one of the most important ways to optimize its accuracy and repeatability in production systems, making this product especially well-suited for fast-cycling industrial and semiconductor manufacturing processes.

Automatically isolates a capacitance manometer from pressures above Full Scale
Includes 100°C heated 628H Baratron® pressure transducer
Full Scale ranges from 0.05 to 1000 Torr

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Manometer Used	Full Scale Range	Avail.	Price
		CV7628HBaratron® Isolation System, 0.05 - 1000 Torr, Heated to 100°C	UNIVERSAL		628H	1 Torr

Specifications

Manometer Used
628H
Full Scale Range
0.05-1000 Torr
Sensor Temperature
Controlled to 100°C
Power Requirements
±15 VDC ±5% @ 0.35 amps

Output Signal
0-10 VDC into > 10 kΩ load
System Connection Fitting
NW16-KF
Compliance
CE
Trip Relays
Two independently-adjusted electromechanical relays, UL listed, rated at 1 amp @ 30 VDC or 0.3 amp @ 30 VAC

Features

CV7628 System Components

The Isolation System consists of a 628 100°C heated process Baratron® capacitance manometer, a Pneumatic Isolation Valve, and an R750 Mini-Baratron® capacitance manometer with Relay Module. The R750C Relay Module monitors the process pressure, and provides a contact closure that is used to open or close a (customer-supplied) solenoid in the pneumatic line to the Pneumatic Isolation Valve. This solenoid closes the valve whenever the process pressure exceeds the Full Scale range of 628 Baratron® capacitance manometer, maintaining it in its optimum working range. Many different Baratron capacitance manometer configurations and trip point options are available.

Accessories

Power Supplies and Displays

Description	Compatibility	Price
AS11900G-03Pressure Input Module, 15 pin D-Sub Connector, 4 Channel	UNIVERSAL	$1,519

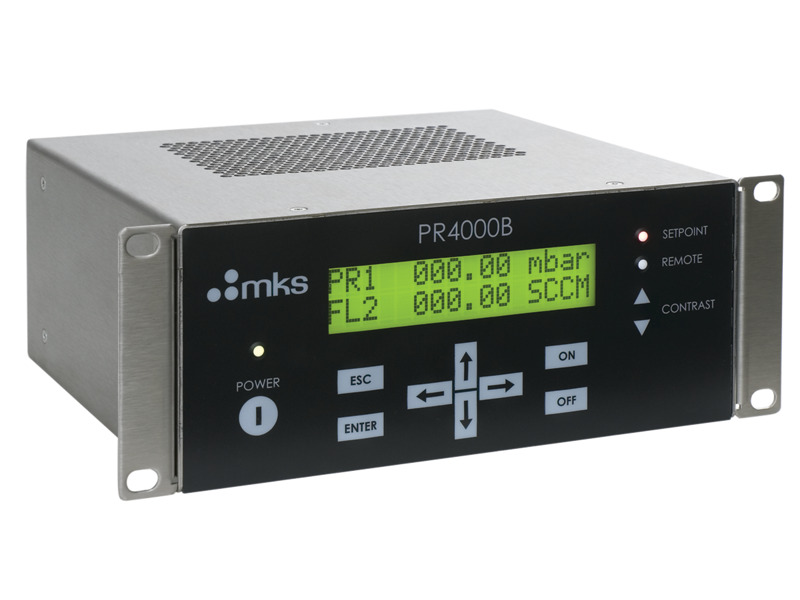

PR4000BF5V2Digital Power Supply, Display, 2 Channel, RS485, ±15VDC, 1.5 Amp	UNIVERSAL	$2,785
PR4000BF2V2Digital Power Supply, Display, 2 Channel, RS232, ±15VDC, 1.5 Amp	UNIVERSAL	$2,982
PR4000BF5V3Digital Power Supply, Display, 2 Channel, RS485, ±24VDC, 1.0 Amp	UNIVERSAL	$2,785
PR4000BF2V3Digital Power Supply, Display, 2 Channel, RS232, ±24VDC, 1.0 Amp	UNIVERSAL	$3,033
PR4000BS2V2Digital Power Supply, Display, 1 Channel, RS232, ±15VDC, 1.5 Amp	UNIVERSAL	$2,706
PR4000BS2V3Digital Power Supply, Display, 1 Channel, RS485, ±24VDC, 1.0 Amp	UNIVERSAL	$2,729

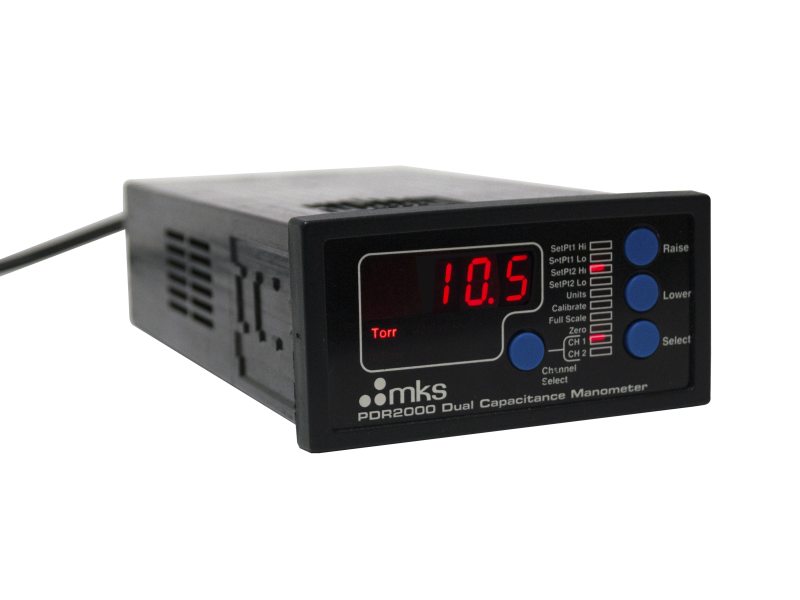

PDR2000AODigital Power Supply, Display, 2 Channels, RS232, ±15 VDC, 0.75 Amp	UNIVERSAL	$999
