ISO Aluminum Centering Rings with Viton O-Ring

ISO Aluminum Centering Rings with Viton O-Ring

Products
Features
Resources
Contact Us

Overview

These aluminum centering rings feature a long lasting Viton® O-Ring rated to 180°C and an Aluminum spacer ring. Centering rings and are used to seal the connection between two ISO vacuum flange faces when clamped or bolted together.

Seal connection between two ISO flange faces
Replaceable 180 °C Max. Viton® O-Ring
Aluminum centering ring
Aluminum spacer ring

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Inner Diameter	Availability	Featured Item	Price		Brand
		100760606 Centering Ring Seal Assembly, ISO-MF, NW63, Viton O-ring, Aluminum $38 Show	100760606 Centering Ring Seal Assembly, ISO-MF, NW63, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW63	2.63 in. (67 mm)	Show		$38

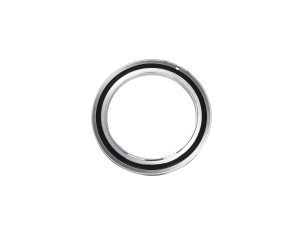

		100760608 Centering Ring Seal Assembly, ISO-MF, NW80, Viton O-ring, Aluminum $47 Show	100760608 Centering Ring Seal Assembly, ISO-MF, NW80, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW80	3.14 in. (80 mm)	Show		$47

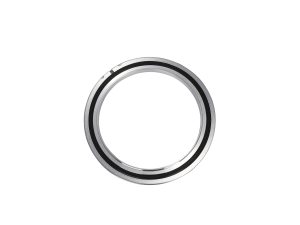

		100760610 Centering Ring Seal Assembly, ISO-MF, NW100, Viton O-ring, Aluminum $47 Show	100760610 Centering Ring Seal Assembly, ISO-MF, NW100, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW100	3.89 in. (99 mm)	Show		$47
		100760616 Centering Ring Seal Assembly, ISO-MF, NW160, Viton O-ring, Aluminum $60 Show	100760616 Centering Ring Seal Assembly, ISO-MF, NW160, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW160	5.90 in. (150 mm)	Show		$60
		100760620 Centering Ring Seal Assembly, ISO-MF, NW200, Viton O-ring, Aluminum $83 Show	100760620 Centering Ring Seal Assembly, ISO-MF, NW200, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW200	8.26 in. (210 mm)	Show		$83
		100760625 Centering Ring Seal Assembly, ISO-MF, NW250, Viton O-ring, Aluminum $95 Show	100760625 Centering Ring Seal Assembly, ISO-MF, NW250, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW250	10.14 in. (258 mm)	Show		$95
		100760632 Centering Ring Seal Assembly, ISO-MF, NW320, Viton O-ring, Aluminum $147 Show	100760632 Centering Ring Seal Assembly, ISO-MF, NW320, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW320	12.30 in. (312 mm)	Show		$147
		100760640 Centering Ring Seal Assembly, ISO-MF, NW400, Viton O-ring, Aluminum $157 Show	100760640 Centering Ring Seal Assembly, ISO-MF, NW400, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW400	15.53 in. (395 mm)	Show		$157
		100760650 Centering Ring Seal Assembly, ISO-MF, NW500, Viton O-ring, Aluminum $274 Show	100760650 Centering Ring Seal Assembly, ISO-MF, NW500, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW500	19.51 in. (496 mm)	Show		$274
		100760663 Centering Ring Seal Assembly, ISO-BF, NW630, Viton O-ring, Aluminum $338 Show	100760663 Centering Ring Seal Assembly, ISO-BF, NW630, Viton O-ring, Aluminum	UNIVERSAL	0.0	1.0	0.0		0.0	NW630	25.41 in. (645 mm)	Show		$338

Show All

Specifications

Component Type

Centering Ring Seal
Series

Series 76
Flange Type

ISO-MF: (NW63 to NW500)
ISO-BF: NW630

Material

Aluminum
Seal Material

Viton®
Spacer Ring

Aluminum

Features

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
