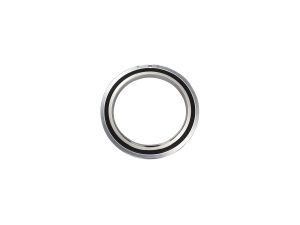

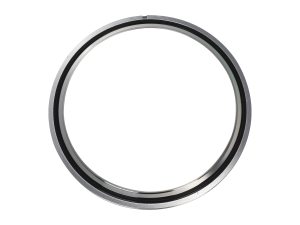

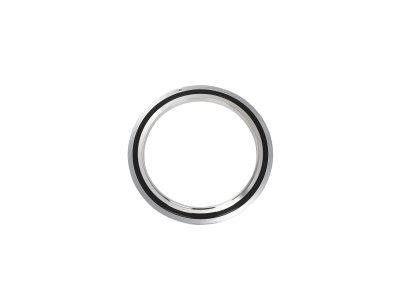

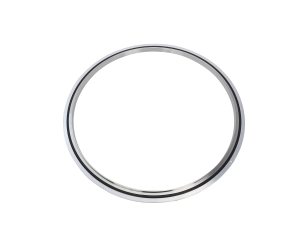

ISO Stainless Steel Centering Rings with Viton O-Ring
Overview
- Seal connection between two ISO flange faces
- Replaceable 180 °C Max. Viton® O-Ring
- Stainless Steel centering ring
- Aluminum spacer ring
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100760506 Centering Ring Seal Assembly, ISO-MF, NW63, Viton O-ring, 304 S.S. |
|
$65.00 |
|
|||
|
100760508 Centering Ring Seal Assembly, ISO-MF, NW80, Viton O-ring, 304 S.S. |
|
$83.00 |
|
|||
|
100760510 Centering Ring Seal Assembly, ISO-MF, NW100, Viton O-ring, 304 S.S. |
|
$83.00 |
|
|||
|
100760516 Centering Ring Seal Assembly, ISO-MF, NW160, Viton O-ring, 304 S.S. |
|
$101.00 |
|
|||
|
|
100760520 Centering Ring Seal Assembly, ISO-MF, NW200, Viton O-ring, 304 S.S. | $142.00 |
|
||||
|
100760525 Centering Ring Seal Assembly, ISO-MF, NW250, Viton O-ring, 304 S.S. |
|
$210.00 |
|
|||
|
|
100760532 Centering Ring Seal Assembly, ISO-MF, NW320, Viton O-ring, 304 S.S. | $734.00 |
|
||||
|
100760540 Centering Ring Seal Assembly, ISO-MF, NW400, Viton O-ring, 304 S.S. |
|
$2,691.00 |
|
|||
|
|
100760550 Centering Ring Seal Assembly, ISO-MF, NW500, Viton O-ring, 304 S.S. | $3,553.00 |
|
||||
|
|
100760563 Centering Ring Seal Assembly, ISO-BF, NW630, Viton O-ring, 304 S.S. | $1,654.00 |
|
||||
|
100996303 Centering Ring Seal Assembly, ISO-MF, NW100, Viton O-ring, 304 S.S., with Screen |
|
$221.00 |
|
Specifications
-
Component TypeCentering Ring Seal
-
SeriesSeries 76
-
Flange TypeISO-MF: (NW63 to NW500)
ISO-BF: (NW630)
-
MaterialStainless Steel
-
Seal MaterialViton®
-
Spacer RingAluminum
Features
