ISO-KF Bellows Section
Overview
- Flexible bellows design for bending and contraction
- Stainless Steel construction
- NW16 to NW50 ISO-KF flange sizes
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100314911G Bellows Hose, NW16 Size ISO-KF Flange, 78-100 mm, Stainless Steel |
|
$52 |
|
|||
|

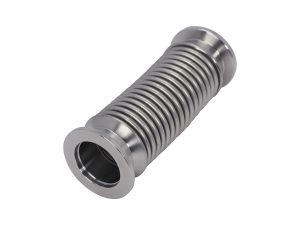

100314913G Bellows Hose, NW25 Size ISO-KF Flange, 78-100 mm, Stainless Steel |
|
$55 |
|
|||
|

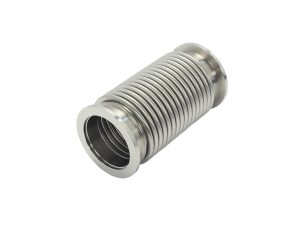

100314915G Bellows Hose, NW40 Size ISO-KF Flange, 74-100 mm, Stainless Steel |
|
$66 |
|
|||
|

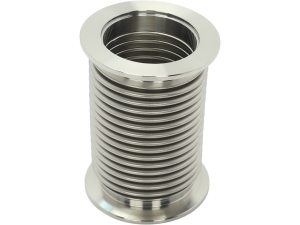

100314916G Bellows Hose, NW50 Size ISO-KF Flange, 79-100 mm, Stainless Steel |
|
$80 |
|
Specifications
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Component Type | Bellows Vacuum Hose | Bellows Vacuum Hose | Bellows Vacuum Hose | Bellows Vacuum Hose | |
| Flange Type | ISO-KF | ISO-KF | ISO-KF | ISO-KF | |
| Flange Size | NW16 | NW25 | NW40 | NW50 | |
| Free Length | 3.94 in. (100 mm) | 3.94 in. (100 mm) | 3.94 in. (100 mm) | 3.94 in. (100 mm) | |
| Compressed Length | 3.07 in. (78 mm) | 3.07 in. (78 mm) | 2.93 in. (74 mm) | 3.11 in. (79 mm) | |
| Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | |
| Wall Thickness | 0.006 in. (0.15 mm) | 0.006 in. (0.15 mm) | 0.006 in. (0.15 mm) | 0.006 in. (0.15 mm) | |
| Static Bend Radius | 1.125 in. | 1.375 in. | 2.5 in. | 3.25 in. | |
| Spring Rate | 56 lb/in. | 44 lb/in. | 32 lb/in. | 32 lb/in. | |
| Dimension "A" | 3.94 in. | 3.94 in. | 3.94 in. | 3.94 in. | |
| Dimension "B" | 3.07 in. | 3.07 in. | 2.93 in. | 3.11 in. |
Notes:
Please see bellows schematic for dimension callouts.
