ISO-KF Thick Wall Metal Vacuum Hose

ISO-KF Thick Wall Metal Vacuum Hose

Products
Features
Resources
Contact Us

Overview

Thick wall stainless steel vacuum hose has a 0.3 mm hose wall and is offered in 250 to 1000 mm unsheathed lengths with NW16 to NW 50 size ISO-KF flanges on each end.

Stainless Steel with 0.3 mm hose wall
250 to 1000 mm lengths
NW16 to NW50 size flanges on both ends

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Component Type	Flange Size	Length	Static Bend Radius	Spring Rate	Availability	Featured Item	Price		Brand

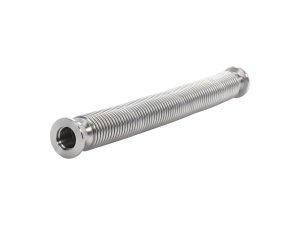

		100315901 Metal Wall Vacuum Hose, NW16 ISO-KF, 250 mm Length, 0.3 mm Hose Wall $127 Show	100315901 Metal Wall Vacuum Hose, NW16 ISO-KF, 250 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW16	9.84 in. (250 mm)	2.125 in.	256 lb/in.	Show		$127
		100315903 Metal Wall Vacuum Hose, NW25 ISO-KF, 250 mm Length, 0.3 mm Hose Wall $84 Show	100315903 Metal Wall Vacuum Hose, NW25 ISO-KF, 250 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW25	9.84 in. (250 mm)	2.875 in.	224 lb/in.	Show		$84
		100315905 Metal Wall Vacuum Hose, NW40 ISO-KF, 250 mm Length, 0.3 mm Hose Wall $107 Show	100315905 Metal Wall Vacuum Hose, NW40 ISO-KF, 250 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW40	9.84 in. (250 mm)	3.5 in.	220 lb/in.	Show		$107

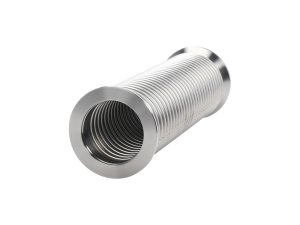

		100315906 Metal Wall Vacuum Hose, NW50 ISO-KF, 250 mm Length, 0.3 mm Hose Wall $137 Show	100315906 Metal Wall Vacuum Hose, NW50 ISO-KF, 250 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW50	9.84 in. (250 mm)	5.25 in.	220 lb/in.	Show		$137
		100316001 Metal Wall Vacuum Hose, NW16 ISO-KF, 500 mm Length, 0.3 mm Hose Wall $139 Show	100316001 Metal Wall Vacuum Hose, NW16 ISO-KF, 500 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW16	19.69 in. (500 mm)	2.125 in.	128 lb/in.	Show		$139
		100316003 Metal Wall Vacuum Hose, NW25 ISO-KF, 500 mm Length, 0.3 mm Hose Wall $158 Show	100316003 Metal Wall Vacuum Hose, NW25 ISO-KF, 500 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW25	19.69 in. (500 mm)	2.875 in.	112 lb/in.	Show		$158
		100316005 Metal Wall Vacuum Hose, NW40 ISO-KF, 500 mm Length, 0.3 mm Hose Wall $195 Show	100316005 Metal Wall Vacuum Hose, NW40 ISO-KF, 500 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW40	19.69 in. (500 mm)	3.5 in.	110 lb/in.	Show		$195

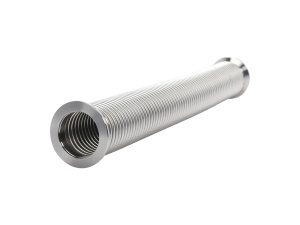

		100316006 Metal Wall Vacuum Hose, NW50 ISO-KF, 500 mm Length, 0.3 mm Hose Wall $290 Show	100316006 Metal Wall Vacuum Hose, NW50 ISO-KF, 500 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW50	19.69 in. (500 mm)	5.25 in.	110 lb/in.	Show		$290

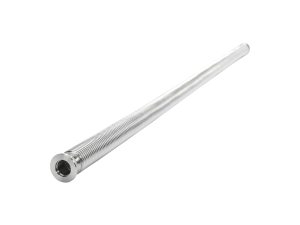

		100316111 Metal Wall Vacuum Hose, NW16 ISO-KF, 1000 mm Length, 0.3 mm Hose Wall $216 Show	100316111 Metal Wall Vacuum Hose, NW16 ISO-KF, 1000 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW16	39.40 in. (1000 mm)	2.125 in.	64 lb/in.	Show		$216
		100316113 Metal Wall Vacuum Hose, NW25 ISO-KF, 1000 mm Length, 0.3 mm Hose Wall $191 Show	100316113 Metal Wall Vacuum Hose, NW25 ISO-KF, 1000 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW25	39.40 in. (1000 mm)	2.875 in.	56 lb/in.	Show		$191
		100316115 Metal Wall Vacuum Hose, NW40 ISO-KF, 1000 mm Length, 0.3 mm Hose Wall $315 Show	100316115 Metal Wall Vacuum Hose, NW40 ISO-KF, 1000 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW40	39.40 in. (1000 mm)	3.5 in.	55 lb/in.	Show		$315
		100316116 Metal Wall Vacuum Hose, NW50 ISO-KF, 1000 mm Length, 0.3 mm Hose Wall $400 Show	100316116 Metal Wall Vacuum Hose, NW50 ISO-KF, 1000 mm Length, 0.3 mm Hose Wall	UNIVERSAL	0.0	1.0	0.0		0.0	Metal Wall Vacuum Hose	NW50	39.40 in. (1000 mm)	5.25 in.	55 lb/in.	Show		$400

Show All

Specifications

Component Type

Metal Wall Vacuum Hose
Series

Series 31
Material

Stainless Steel

Flange Type

ISO-KF
Wall Thickness

0.012 in. (0.30 mm)

Features

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
