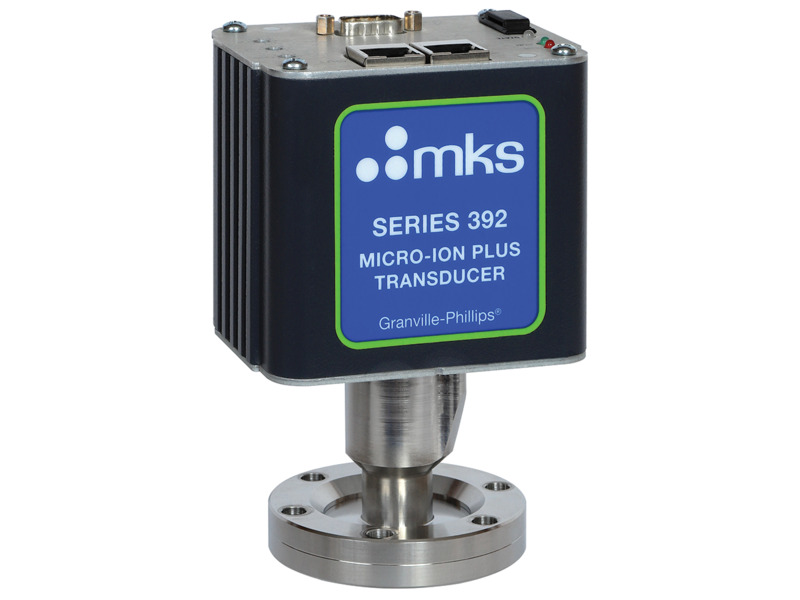

392 Micro-Ion® Plus Vacuum Transducers
Model: 392710-2-YE-T
392 Micro-Ion® Plus Vacuum Transducers
Model: 392710-2-YE-T
Overview
Overview
The 392710-2-YE-T Granville-Phillips® 392 Micro-Ion® Plus Vacuum Gauge Module features a ISO-KF Nw25 fitting and RS485 communications. Two set point control relays are included to simplify process control functions. It is a second generation full range pressure measurement module that combines industry-standard Micro-Ion® ionization vacuum gauge technology with a miniature Pirani Conductron heat-loss sensor to provide accurate, continuous pressure measurement from high vacuum to atmosphere. The 392 Micro-Ion® Plus Vacuum Gauge Module combines Granville-Phillips® industry-standard and application-tested Micro-Ion® ionization vacuum sensor with an innovative miniature Pirani Conductron vacuum sensor in a single gauge assembly with a compact electronics control module. The 392 Micro-Ion® Plus Vacuum Gauge Module compact modular design reduces the number of separate gauges, vacuum interfaces, cabling and control electronics that are typically required for full range pressure measurement. The full range pressure measurement is output as a single analog signal.
Technical Specs
- Absolute Measurement Range1.0 x 10-9 to 760 Torr
- Digital CommunicationEtherCAT
- TypeVacuum Gauge Module
- DisplayNo
- InterfaceEtherCAT
- Relays2
- Fitting TypeNW25 ISO-KF
- Operating Temperature10 - 40°C (50 - 104°F), non-condensing
- Maximum Bakeout Temperature105°C (221°F) with electronics removed
- Storage Temperature-40 - 70°C (-40 - 158°F)
- Relay Contact RatingMaximum 1 A at 30 VDC, Resistive load, Minimum 5 mA at 5 VDC, Resistive load
- Power Requirements24 VDC +10% to -15%, 1 Amps, 22 Watts
- Accuracy1 x 10-8 to 100 mTorr ±15% of Reading, 100 mTorr to 150 Torr ±10% of Reading, 1.33 x 10-8 to 0.133 mbar ±15% of Reading, 0.133 to 200 mbar ±10% of Reading, 1.33 x 10-6 to 13.3 Pa ±15% of Reading, 13.3 to 2.00 x 104 Pa ±10% of Reading (for Air or N2 Absolute Pressure)
- Repeatability1 x 10-8 to 100 mTorr: ±5% of Reading, 100 mTorr to 150 Torr: ±2.5% of Reading, 1.33 x 10-8 to 0.133 mbar: ±5% of Reading, 0.133 to 200 mbar: ±2.5% of Reading, 1.33 x 10-6 to 13.3 Pa: ±5% of Reading, 13.3 to 2.00 x 104 Pa: ±2.5% of Reading (for Air or N2 Absolute Pressure)
- Internal Volume10.8 cm3 (0.65 in3)
- Exposed Materials304 stainless steel, tantalum, tungsten, yttria-coated iridium, alumina, CuAg eutectic, Kovar, gold or nickel plated Kovar, borosilicate glass
- Electronic Casing and FlangeAluminum Extrusion with Powder-coat
- Compliancece
- FilamentYttria-coated Iridium
- Response Time<25 mseconds
- Connectors15-pin subminiature-D male, two RJ45
- UnitsTorr
- X-ray Limit<3 x 10-10 Torr, <4 x 10-10 mbar, <4 x 10-8 Pascal
- Emission CurrentAutoranging
- DegasElectron bombardment, 3 Watts for 1 minute/filament
- Automatic Ionization Gauge On Setting2 x 10-2 Torr, 2.66 x 10-2 mbar, 2.66 Pa, with decreasing pressure
- Automatic Switch to High Emission Setting5 x 10-6 Torr, 6.66 x 10-6 mbar, 6.66 x 10-4 Pa, with decreasing pressure
- Automatic Ionization Gauge Off Setting3 x 10-2 Torr, 3.99 x 10-2 mbar, 3.99 Pa, with increasing pressure
- Automatic Switch to Low Emission Setting1 x 10-5 Torr, 1.33 x 10-5 mbar, 1.33 x 10-3 Pa, with increasing pressure
- Heat-loss Sensor WiresGold-plated tungsten
- Maximum Inrush Current2 Amps, 48 Watts, for 0.5 seconds
