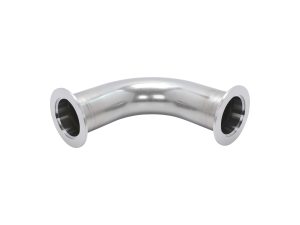

ISO-KF Flange Long Radius 90 Degree Elbow Fittings

ISO-KF Flange Long Radius 90 Degree Elbow Fittings

Products
Specifications
Features
Resources
Contact Us

Overview

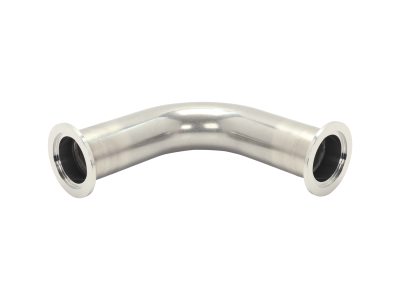

Long radius 90 degree elbow fittings are twice standard modulus and are used to make a right angle change of direction between two ISO-KF flange faces.

90° elbow with longer radius than 1.5x pipe diameter
304 Stainless Steel construction
NW40 to NW50 flange sizes
Twice standard modulus

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Availability	Featured Item	Price		Brand
		100314415 90 Degree Elbow Fitting, NW40 Size ISO-KF Flange, Twice Standard Modulus $145 Show	100314415 90 Degree Elbow Fitting, NW40 Size ISO-KF Flange, Twice Standard Modulus	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	Show		$145
		100314416 90 Degree Elbow Fitting, NW50 Size ISO-KF Flange, Twice Standard Modulus $168 Show	100314416 90 Degree Elbow Fitting, NW50 Size ISO-KF Flange, Twice Standard Modulus	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	Show		$168

Show All

Specifications

Models	100314415	100314416
Component Type	Elbow	Elbow
Flange Type	ISO-KF	ISO-KF
Flange Size	NW40	NW50
Modulus	5.12 in. (130 mm)	5.51 in. (140 mm)
Material	304 Stainless Steel	304 Stainless Steel
Dimension "A"	5.12 in.	5.51 in.

Features

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
