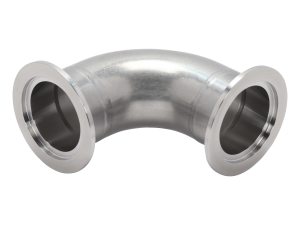

ISO-KF Flange Smooth Radius 90 Degree Elbow Fittings
Overview
These smooth radius 90 degree elbow vacuum pipe fittings have standard modulus and are made with 304 stainless steel. They are used to make a right angle change of direction between two ISO-KF flange faces.
- 90° smooth elbows with standard modulus
- 304 Stainless Steel construction
- NW16 to NW50 flange sizes
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100314401 ELBOW,KF,NW16,90DEG,304L 90 Degree Elbow Fitting, NW16 Size ISO-KF Flange, Standard Modulus |
|
$58 |
|
|||
|
100314403 ELBOW,BENT,90 DEG,NW25,SS 90 Degree Elbow Fitting, NW25 Size ISO-KF Flange, Standard Modulus |
|
$65 |
|
|||
|
100314505 ELBOW,KF,NW40,90DEG,304L 90 Degree Elbow Fitting, NW40 Size ISO-KF Flange, Standard Modulus |
|
$91 |
|
|||
|
100314506 ELBOW,KF,NW50,90DEG,304L 90 Degree Elbow Fitting, NW50 Size ISO-KF Flange, Standard Modulus |
|
$115 |
|
Specifications
| Models |
ELBOW,KF,NW16,90DEG,304L |
ELBOW,BENT,90 DEG,NW25,SS |
ELBOW,KF,NW40,90DEG,304L |
ELBOW,KF,NW50,90DEG,304L |
|
|---|---|---|---|---|---|
| Component Type | Elbow | Elbow | Elbow | Elbow | |
| Flange Type | ISO-KF | ISO-KF | ISO-KF | ISO-KF | |
| Flange Size | NW16 | NW25 | NW40 | NW50 | |
| Modulus | 1.57 in. (40 mm) | 1.97 in. (50 mm) | 2.56 in. (65 mm) | 2.76 in. (70 mm) | |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | |
| Dimension "A" | 1.57 in. | 1.97 in. | 2.56 in. | 2.76 in. |
Features
Resources
Literature
- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
