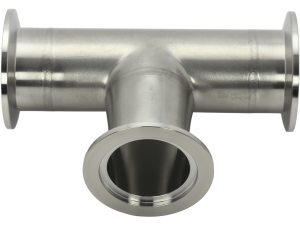

ISO-KF Flange Tee Fittings
Overview
- Tees for same size ISO-KF flanges
- 304 Stainless Steel construction
- NW16 to NW50 flange sizes
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100314601 Tee Fitting, NW16 Size ISO-KF Vacuum Flange, 304 Stainless Steel |
|
$84 |
|
|||
|
100314603 Tee Fitting, NW25 Size ISO-KF Vacuum Flange, 304 Stainless Steel |
|
$111 |
|
|||
|
100314605 Tee Fitting, NW40 Size ISO-KF Vacuum Flange, 304 Stainless Steel |
|
$121 |
|
|||
|
100314606 Tee Fitting, NW50 Size ISO-KF Vacuum Flange, 304 Stainless Steel |
|
$163 |
|
Specifications
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Component Type | Tee | Tee | Tee | Tee | |
| Flange Type | ISO-KF | ISO-KF | ISO-KF | ISO-KF | |
| Flange Size | NW16 | NW25 | NW40 | NW50 | |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | |
| Dimension "A" | 1.57 in. | 1.97 in. | 2.56 in. | 2.76 in. | |
| Dimension "B" | 3.15 in. | 3.94 in. | 5.12 in. | 5.51 in. |
Features
Resources
Literature
- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
